Aluminum Profile C&U Channel

1.Independent individual, can be installed and disassembled at will, easy to maintain and maintain

2.Nice appearance

3.High strength and strong corrosion resistance

4.Good mechanical properties, simple and convenient

Product Details

Aluminum groove is a common aluminum extrusion material. Compared with other materials such as steel or iron, the cost of aluminum extrusion die is lower than that of forging. The aluminum alloy aluminum extrusion profile can achieve the maximum structural efficiency, and the aluminum profile can be used where the strength needs to be increased, and it can be removed where it is not needed. Since the aluminum profile can be extruded into any messy section, the extruded aluminum profile can be easily assembled with reasonable planning, reducing the need for machining. The common shapes are U-shaped grooves and C-shaped grooves. Because they are made of aluminum alloy, they have a beautiful and flat appearance and are easy to clean. Decorative function: Our common flat seal grooves are a kind of decorative accessories, so one of its functions is decorative profiles. The color of aluminum profiles is generally monotonous, and there are many colors of flat sealing grooves. For example, the yellow grooves can play a warning role. If the flat sealing grooves are used on the aluminum profile frame, it is more eye-catching.

Maintain cleanliness: The main function of the flat sealing groove is to prevent dust from entering the groove width of the profile, and it is easier to clean. In addition to the decorative protection of the surface of the aluminum profile and the cleanliness of the groove, its U-shaped or C-shaped shape, plexiglass, plywood, wire mesh, etc. are placed in the groove to play a sealing or blocking role. Lightweight, strong, durable, and resistant to corrosion, aluminum troughs are widely used in construction and manufacturing, cable routing and lighting projects and decoration.

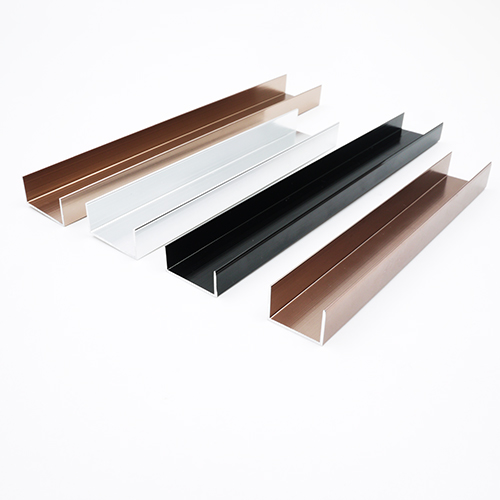

C&U Channel

Specification

Product Name	Customized Aluminum C&U CHANNEL
Material	6000 series Aluminium
Temper	T3-T8,T5,T6
Size / Thickness	General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from
Size / Thickness	8~25 um, powder coating from 40 ~ 120 um.
Shape	As Customized,Square, Rectangle, Round, Flat, Angle, T profile etc.
Application	In furniture, windows&doors, decorations ,industry, construction and so on
Deep process	CNC, drilling, milling, cutting, welding, bending, assembling
Color	Silver, Black, White, Champagne, Gray, Gold, Rose Gold,Matte
MOQ	500KG
Packing Details	(1)Inside : packed with plastic protective film to protect each piece
	(2) Outside: Wrap to be bundles by waterproof craft paper
Surface treatment	Mill finish, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing
Delivery time	(1)Die Developing and Sample testing: 12-15 days .
	(2) Mass Production completed: 20-30days after sample is confirmed by Buyer.
Payment terms	T/T 30% for deposit, balance before shipping.

Description

Aluminum U&C Channel is smooth, linear and fairly narrow. It provide a supportive frame for roll formed products and are ideal for engineering and structural applications such as light building frames, frame extensions, light poles, lighting fixtures, window frames, car bumpers, hardware joints and boat dock ladders.

Aluminum U channels also has high electrical conductivity and is good heat conductor and reflector, making it ideal for heat transfer and heat shield applications

Application

1) Exterior of building, pillar, terrace, balcony

2) Window and door rails and frames

3) Furniture wardrobe rails, frams and kitchen cabinet handles

4) Automatic equipment, profile parts for industrial machines

Product form
