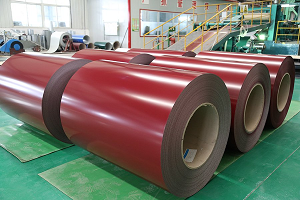

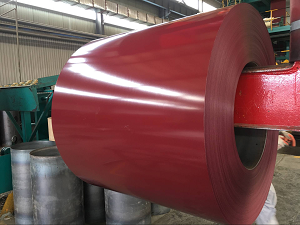

Color coated aluminum plate

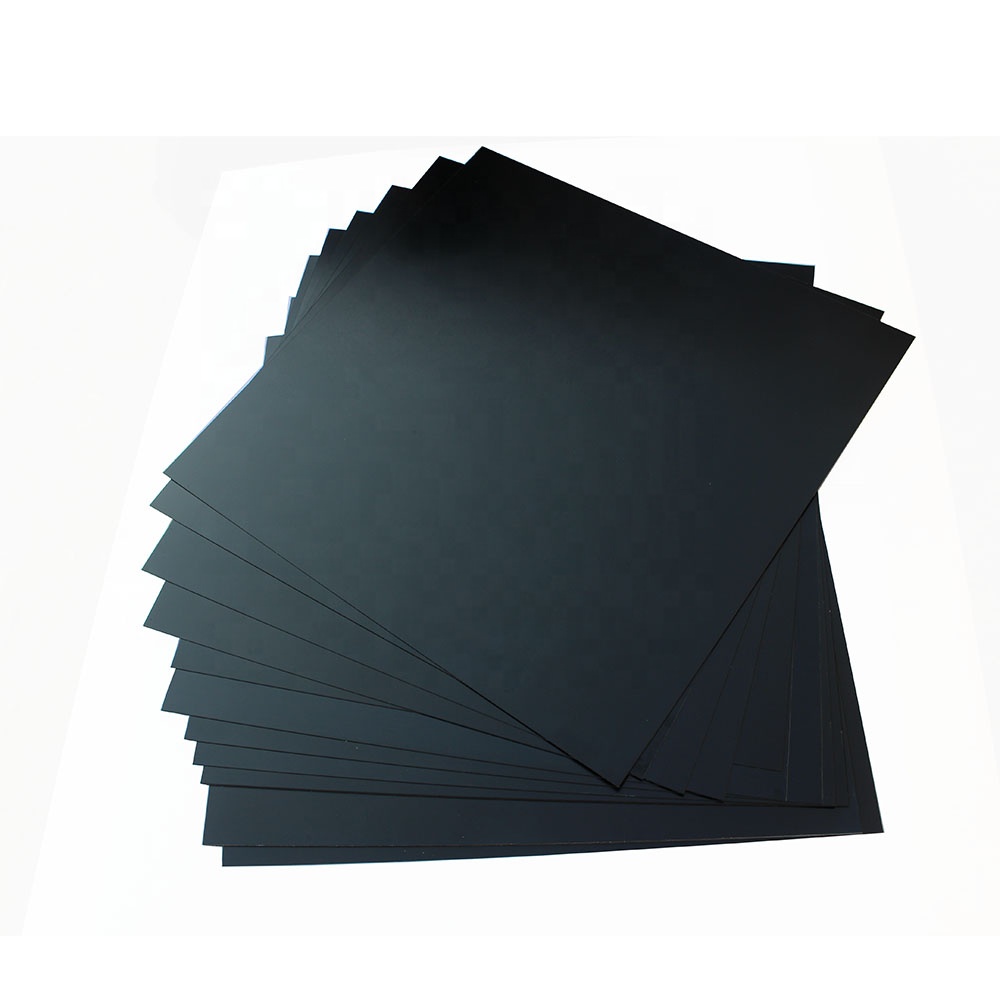

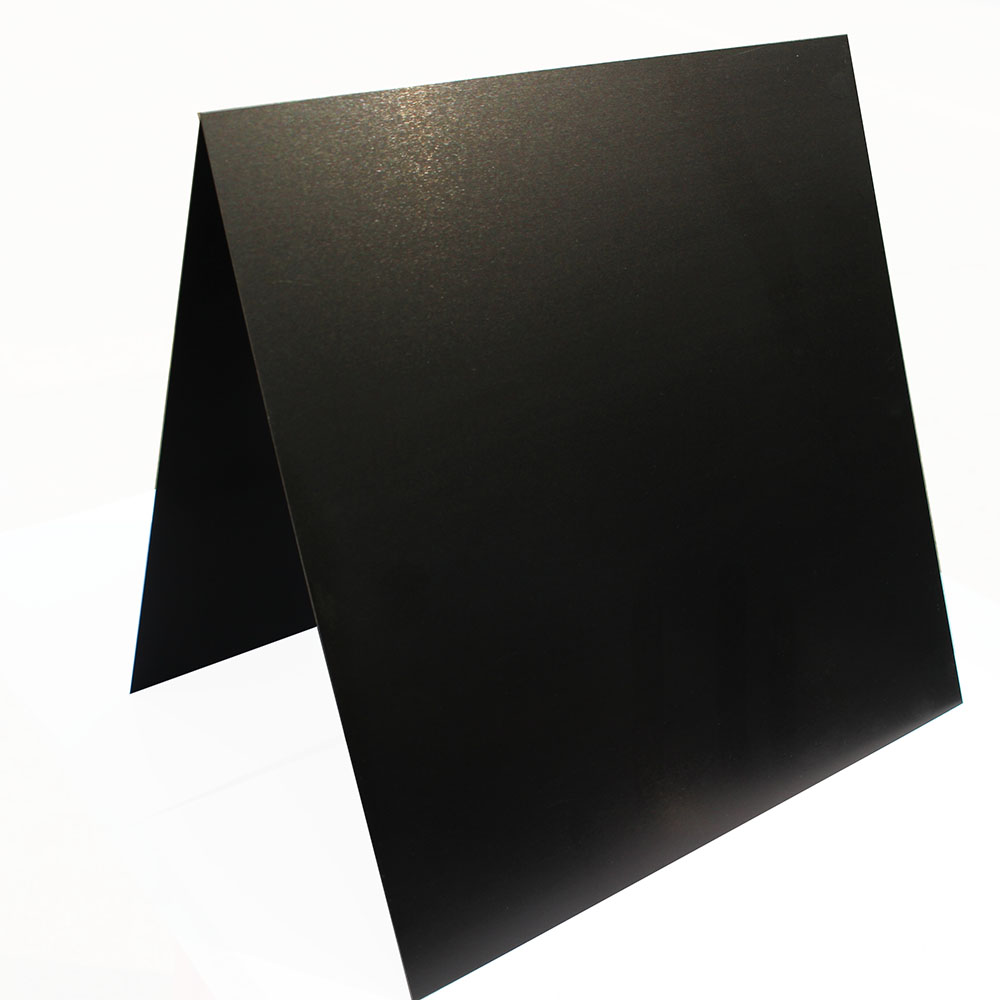

Pre painted Black color coated aluminum plate 3003 aluminum plate for food carts

3000 series aluminum sheet includes 3003, 3103, 3004, 3105 and 3005 series. The 3003 and 3A21 series are the representative series.

1. Alloy:3003, 3004, 3005, 3105

2. Temper: H14, H16, H18, H22, H24, H26, O

3. Thickness(mm):0.25-10

4. Width(mm):800-2200

5. This series aluminum sheet is anticorrosive and its production technology is good.

6. The main ingredient in it is manganese element and the content is between 1.0% and 1.5%.

7. 3000 aluminum sheet common specification: 4×8 aluminum sheet, 3mm aluminium sheet, 2mm aluminium sheet, 1mm aluminium sheet, aluminum sheet metal 4×8 , aluminium sheet 1mm , 4mm aluminium sheet, 0.5 mm aluminium sheet , 5×10 aluminum sheet ,1.5 mm aluminium sheet, 6mm aluminium sheet ,4 by 8 aluminum sheets, aluminum panels , 4×8 1mm aluminum sheet , 4×10 aluminum sheet , 48 x 96 aluminum sheet, 5mm aluminum sheet , 4×4 aluminum sheet, 8×4 aluminium sheet , thin aluminum sheet and thick aluminum plate can be customized.

3004 aluminum plate is an AL-Mn alloy, which is the most widely used rust-proof aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum) and cannot be heat-treated. Therefore, using cold working to improve its mechanics performance: It has high plasticity in the annealed state, good plasticity in semi-cold hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability and poor machinability.

Color coating plate commonly use PE,SMP, HDPPVDF, etc coating. It includes 2/1 and 2/2. The top painting is about20-25pm and the back is about 8-10um. Construction topical should not be lower than 20um and1opm. Normally. ne color coating plate introduce the US ASTM A527 (GI), ASTM AT92(GL), Japan JIS G3302, the European EN / 0142, Korea KS D3506 and Baosteel Q/BQB420.
Coating Performance
PE: Good adhesion, and form ability in a wide range of outdoor durability, medium chemical resistance.Service life is 7-10 years
SMP: Excellent hardness, wear resistance and heat resistance. It has the good external durability and non-powder resistance but the gloss retention and flexibility are limited. Service life is 10-15 years.
HDP:Better UV resistance, high durability,the mainly performance between PE and PVDF coating. Service life is 10-12 years.
PVDF:Best formality and color retention,excellent outdoor durability and dust resistance, solvent resistance but color limited. Service life 20-25 years.

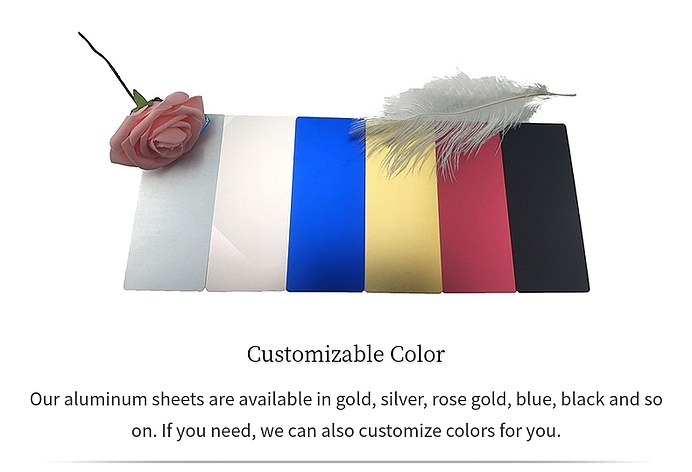

 We can customized the color depending on your request.

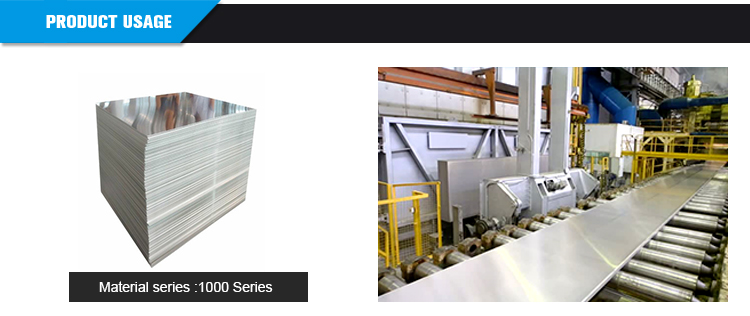

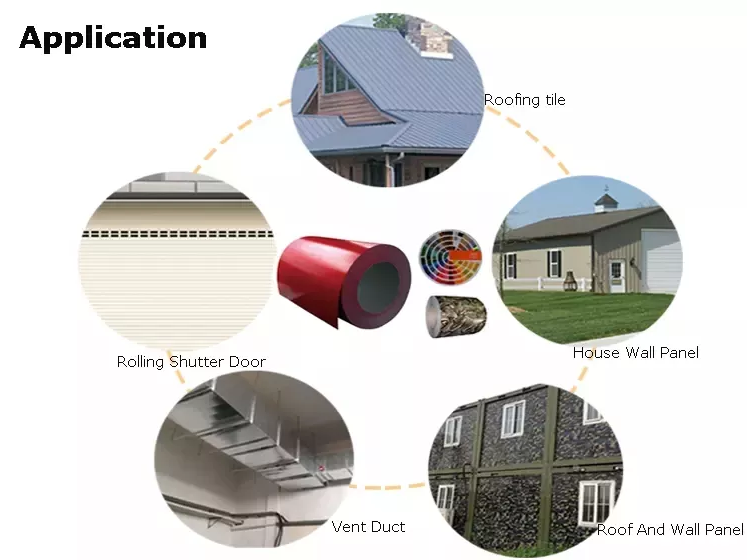

This series aluminum strip can be used to produce plates, thick plates, tensile pipes, extrusion pipes, etc.
It can also be used to produce zip-top cans and parts which require more than the parts made by the 3003 series, such as production and storage devices of chemical products, parts of lamps, etc.

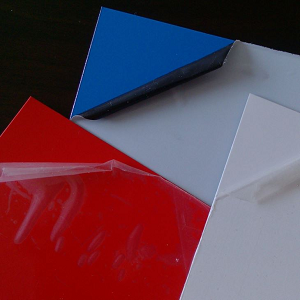

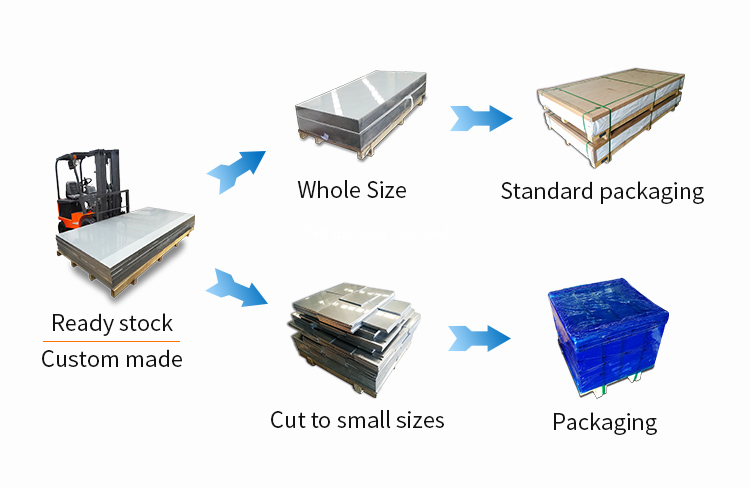

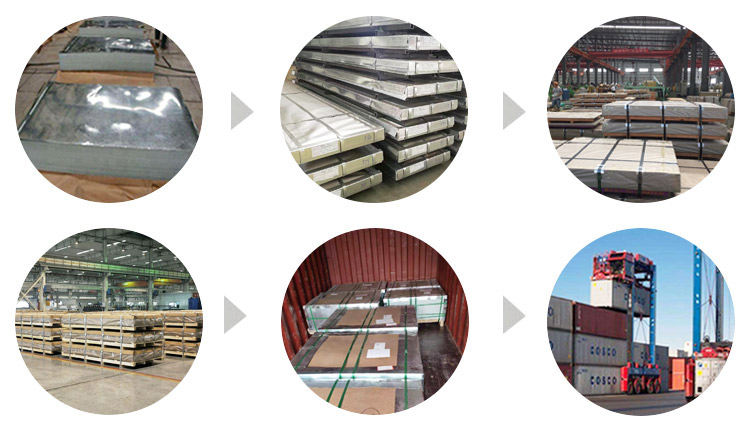

 The first layer of product packaging is packed with PVC film or waterproof kraft paper, the second layer is packed with iron, and then wrapped in metal pallets or square tubes with steel strips.

Packing and shipping
1.Export sea worthy package + water proof paper + wooden pallet
2.Max Loading 26.5mt for each 20Gp container
3.Safe loading and fixing Professional teams
4.Professional shipping line

Delivery:20 working days after confirming the order or according to your order quantity
Port of shipment:shanghai
Payment:T/T,Western Union,Trade Assurance
Remark: Insurance is all risk and accept the third party test.
